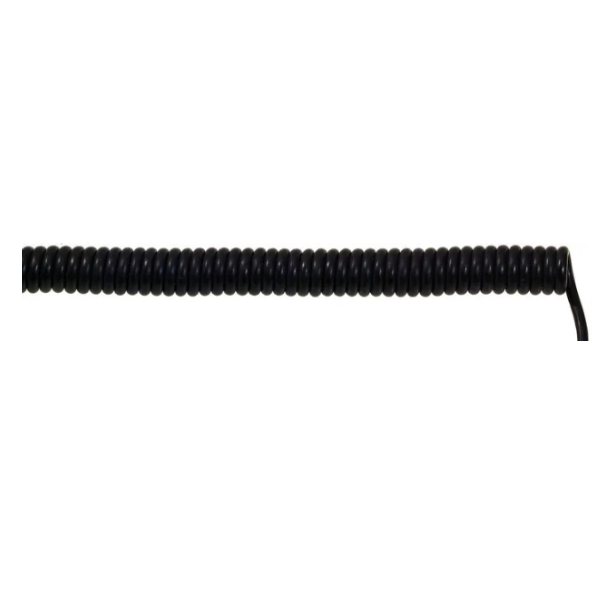

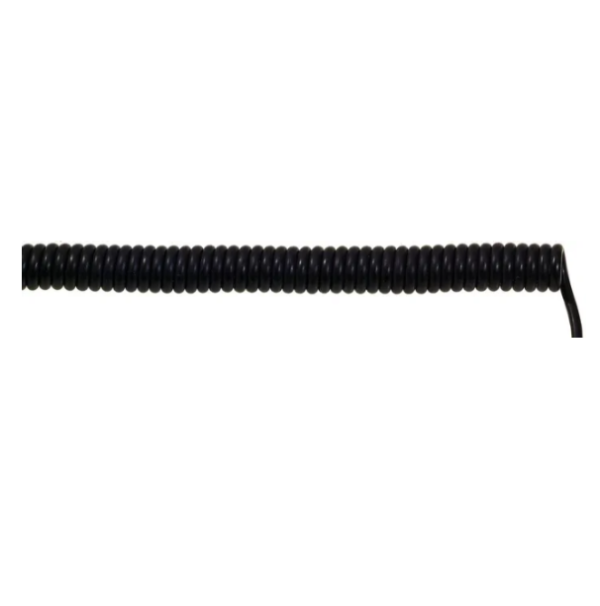

Unitronnic Spiral shielded PUR cable

Description

Benefits

• Overall screening prevents high-frequency interference and guarantees accurate signal transmission
• Extended lengths of up to 4 times the unextended spiral length

Application range

• In measurement and control engineering
• Wherever screened cables with smallest dimensions are required,
• requirements of electronic applications
• Handling and measurement equipment
• Conveyor and transport systems

Product features

• Abrasion- and cut-resistant
• Very high flexibility

Product Make-up

• Basis: UNITRONIC LiYD11Y
• Conductor made of bare copper wires
• Core insulation: Based on PVC
• Screening: wrapped with braided copper wires
• Outer sheath: PUR compound
• Length of straight ends: 1st end = 200 mm, 2nd end = 600 mm
• Versions without the mandatory LAPP designation but with other solid lengths, end lengths and end forms are available on request

Technical Data

Classification: ETIM 5

• ETIM 5.0 Class-ID: EC000247
• ETIM 5.0 Class-Description: Spiralized cable
•

Classification: ETIM 6

• ETIM 6.0 Class-ID: EC000247
• ETIM 6.0 Class-Description: Spiralized cable
•

Core identification code

• DIN 47100
•

Peak operating voltage

• 250 V (not for power transmission)
•

Conductor stranding

• Extra-fine wire according to VDE 0295, class 6/IEC 60228 class 6
•

Test voltage

• 1200 V
•

Temperature range

• Flexing: -5°C to +50°C
•

Note

• Unless specified otherwise, the shown product values are nominal values. Detailed values (e.g., tolerances) are available upon request.
• Copper price basis: EUR 150/100 kg. Refer to Catalog Appendix T17 for the definition and calculation of copper-related surcharges.
• Photographs and graphics are not to scale and do not represent detailed images of the respective products.
• Versions without the mandatory LAPP designation but with other solid lengths, end lengths and end forms are available on request
